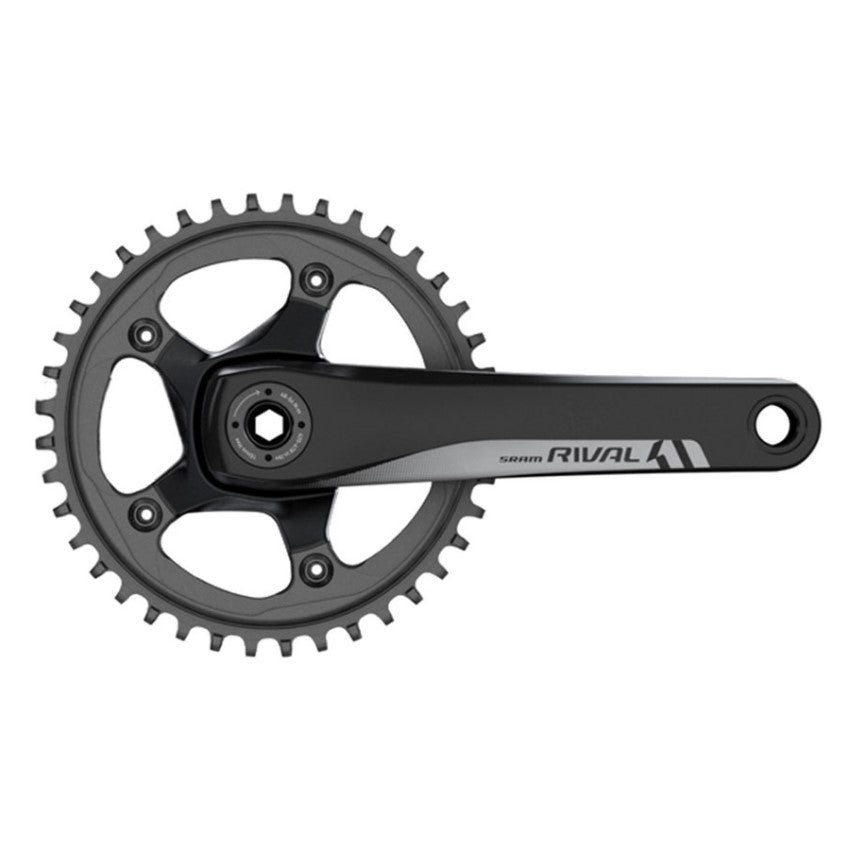

SRAM Cranksets | Rival GXP X-SYNC, 1x11-Speed

The SRAM Rival 1 cranksets deliver immense performance across a broad variety of bikes and disciplines. Paved or not. Cyclocross or triathlon. Road racing or unchartered journeys. Rival®1 provides a single-minded proposition to meet each challenge and expand your limits.

Features

• Forged aluminum arms with detachable spider
• X-SYNC™ chainring-an integral component of the SRAM 1x™ drivetrain
• X-SYNC™ tall, square tooth design provides maximum chain control Sharp, narrow tooth profile and rounded chamfer edges help manage a deflected chain
• Mud and debris-clearing recesses for the inner chain links and rollers

Technology

BB30
Besides serious weight savings, this bottom bracket means a narrow Q-factor, more ankle clearance, greater bearing durability, and stronger crank construction.

GXP
GXP’s gutter seal design cuts friction, durability, and weight—improving both feel and performance.

PRESSFIT 30
It’s all the best from BB30 and Press-Fit bottom brackets in one captivating package. This bottom bracket is designed for 30mm spindle cranksets. The key difference with PressFit 30 is how the bearings are fitted into the frame. Bearings are housed in nylon cups which will be pressed into the frame's bottom bracket shell. PressFit 30 will feature an integrated seal, pre-assembled into the cups, to further prolong bearing life.

Specifications

• Crank Arm Length: 170mm, 172.5mm
• BB Spindle Interface: 30mm, GXP
• BB Compatibility: BB30/PF30-68mm, GXP/PF GXP 68mm
• Speeds: 11
• Chainring Material: Aluminum
• Bolt Circle Diameter (BCD): 110 BCD
• Chainline: 45.5mm, 47.5mm
• Chainring Size: 42T

SKU# 00.6118.368.001
