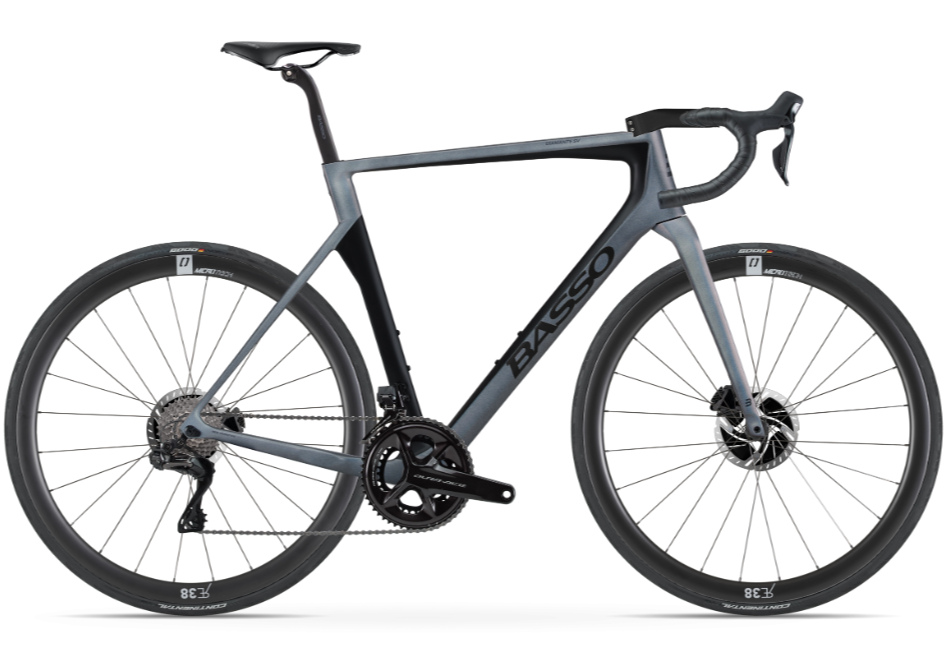

    Basso Road Bike | Diamante SV, Shimano Dura-Ace DI2, w/ Microtech RE-38 Wheels 2022

    Rs. 1,071,990.00
    Tax included. Shipping calculated at checkout.
    Shop securely for thousands of cycling products online in India Shop online securely for thousands of cycling products in India
    Due to unpredictable situations in today's world Post Covid-19, products ordered can get cancelled or delayed if there are any fulfilment constraints from our channel partners. Payment made will get refunded in those cases. Please speak with our support team for any guidance while ordering. Product Country of Origin: Taiwan.

    Super Veloce, Super Versatile
    While improving upon past success is never easy, taking an award-winning and universally lauded platform and making it faster and better proved arduous. Thanks to its competitive nature and desire to evolve, Basso enjoyed the challenge, and the result demonstrates the effort, attention to detail, and passion that went into this project.

    A perfect blend of carryover tech and the new design makes for a better, best Basso.

    Size-specific construction
    Diamante SV's carbon layup, tube diameters, and construction vary in function with size. From 45 to 63, you will experience the same perfect riding quality.


    Fork Performance design
    Vertically compliant and horizontally rigid to confer unique handling precision and comfort on rough surfaces.


    Rear triangle efficiency
    Lower profile stays for rear triangle reactiveness.


    Integrated Handlebar Levita
    The Diamante SV tip for unprecedented handling: stiff, light, and ergonomic. Levita redefines riding precision in a heap of technology and aesthetic purity.


    3B Clamp System Gen 2
    A hidden fixing solution that is invisible on the frame, intertwining technological and aesthetic innovation.
    The result is a lightweight, invisible and robust integrated system with three screws, which has been further implemented through the vulcanization of the steel plank. This Basso solution gives the 3B system an anti-vibration function, which improves the riding experience by elevating comfort on uneven and bumpy surfaces.


    Tire Clearance
    Tire clearance up to 32mm for increased versatility and performance in any situation.


    • Frame: Diamante SV carbon monocoque construction 100% 3K Torayca HMCF T1000 and T800
    • Fork: Diamante SV carbon monocoque construction 100% 3K Torayca HMCF T1000 and T800
    • Seat Post Clamp: 3B Gen 2 Seatpost Clamp
    • Front Thru Axle: Basso Standard 125mm x 12mm
    • Rear Thru Axle: Basso Standard 165mm x 12mm
    • Hanger: Basso Disc Standard
    • Headset: Microtech Integrated Cables
    • Groupset: Shimano Dura Ace Di2 Disc
    • Crank: Shimano Dura-Ace Hollowtech II
    • Crank Arm: 172.5
    • Chain Rings: 50-34
    • Chain: Shimano Dura-Ace 12v
    • Bottom Bracket: Shimano Dura-Ace
    • Cassette: Shimano Dura-Ace 12v
    • Cassette Gears: 11-30
    • Front Derailleur: Shimano Dura-Ace DI2 2x12 v
    • Rear Derailleur: Shimano Dura-Ace DI2 12v
    • Shifters: Shimano Dura-Ace DI2 Dual Control 12 v
    • Brakes: Shimano Dura-Ace
    • Rotors Front: Shimano Dura-Ace 160 mm; Rear: Shimano Dura-Ace 160 mm
    • Handlebar: 100 mm x 420 mm
    • Computer Mount: Integra "Standard" Head Unit Mount
    • Spacers: *Spacers already included: 1 x 10 mm, 3 x 5 mm
    • Handlebar Tape: "The Ribbon" Road Handlebar Tape
    • Seatpost: Diamante SV – 15 mm Seatpost
    • Saddle: Selle Italia Flite Boost SuperFlow Carbon Saddle
    • Wheels: Microtech RE38
    • Tires: Continental GP5000 – 700 x 28 mm Tires.

    Geometry & Size Guide

    Every good bike fit starts with choosing the correct frame size for you. This will allow you to benefit best of the bike’s performance and comfort for an efficient riding position.


    45 48 51 53 56 58 61 63
    Seat Tube (A1) 450 mm 480 mm 510 mm 530 mm 560 mm 580 mm 610 mm 630 mm
    Top Tube (B) 505 mm 515 mm 525 mm 545 mm 560 mm 575 mm 590 mm 605 mm
    Reach (R) 375 mm 375 mm 378 mm 384 mm 386 mm 389 mm 390 mm 398 mm
    Stack (S) 523 mm 523 mm 548 mm 560 mm 587 mm 610 mm 634 mm 658 mm
    Seat Tube Angle (C) 76° 75° 75° 74° 73,5° 73° 72,5° 72,5°
    Steering Tube Angle (D) 71,8° 71,8° 72° 72,3° 73,5° 73,5° 74° 74,5°
    Chain-Stay Length (E) 404 mm 404 mm 404 mm 404 mm 406 mm 410 mm 410 mm 410 mm
    BB to Fork Length (F) 574 mm 574 mm 583 mm 592 mm 590 mm 599 mm 602 mm 602 mm
    Head Tube (H) 101 mm 101 mm 126 mm 138 mm 156 mm 180 mm 203 mm 226 mm
    Handlebar width C/C (M) 400 mm 400 mm 420 mm 420 mm 420 mm 420 mm 440 mm 440 mm
    Stem Length (N) 90 mm 90 mm 100 mm 100 mm 110 mm 120 mm 120 mm 120 mm
