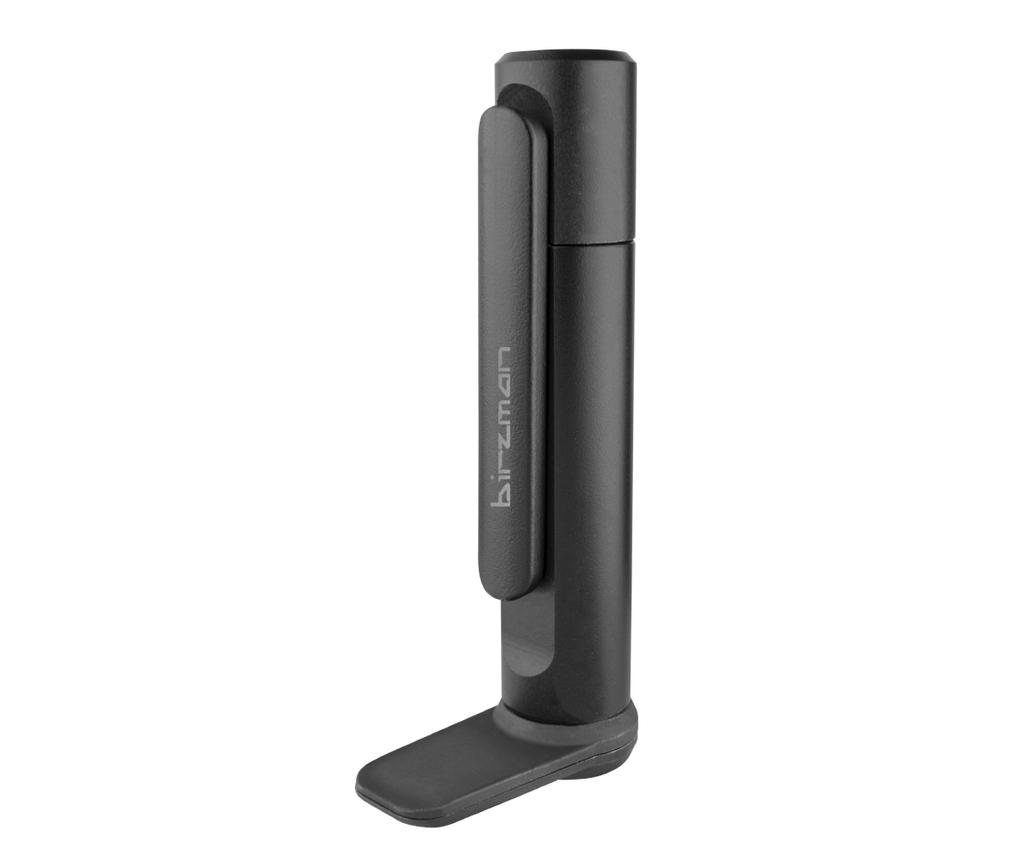

Birzman Disc Brake Piston Pusher | BM20-DBPP

Like a piston press, but doubled.
Simultaneously presses pistons back into the caliper with parallel and symmetrically moving panels, the Disc Brake Piston Pusher is a handy tool that prepares the caliper for brake pad replacements.

• Compatible with two- and four-piston brake calipers with an opening wider than 23mm.
• Material: Aluminium 6061 / Alloy Steel
• Size: Ø23 x 121mm
• Weight: 220g

Instructions of Use

For Top-loading Callipers:

• - Remove brake pads, insert the tool into the caliper with the rotor between the two panels.
• - Turn the handle clockwise to expand the panels and press the pistons back until flush with the caliper.

For Bottom-loading Callipers:

• - Detach the wheel before using the tool.

Note:
This tool is compatible with calipers with an opening of 23mm or more in width.
Certain brake calipers with unique structures e.g. Magura MT5/7s are not compatible.

SKU# BM20-DBPP
