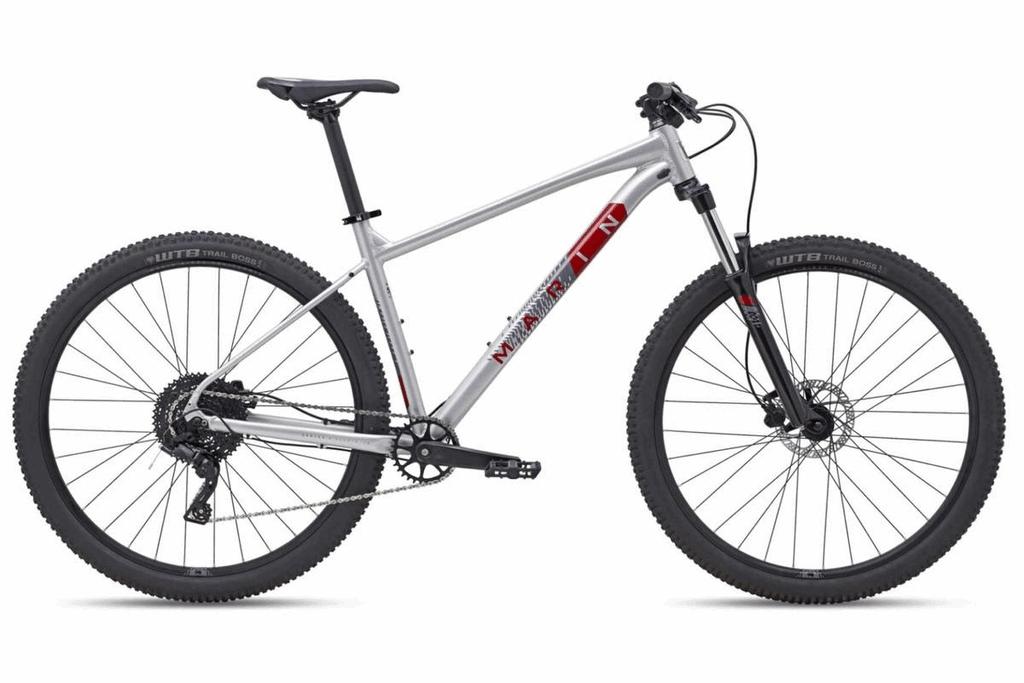

Marin Bikes Mountain Bikes | Bobcat Trail 4

Hardtail Trail Riding - Capable for Aggressive Singletrack

The Bobcat Trail is a capable mountain bike with modern trail geometry built for exploring singletrack trail systems. Best-in-class frames and solid, serviceable spec make the Bobcat Trail a solid choice for the recreational rider looking to step up to modern geo and step deeper into mountain biking, and for the experienced rider in search of an update that doesn’t break the bank.

The Bobcat Trail family of mountain bike hardtails is designed for the rider looking for a capable singletrack machine, featuring everything you need to have a great ride. The heart and soul of the ride stem from the lightweight Series 2 aluminum alloy frame, with long and low trail geometry and 27.5” or 29” wheels, 120mm of rock garden-ready travel, and internal housing routing. All Bobcat Trail models feature hydraulic disc brakes and are available with wide-range off-road specific drivetrains.

• Suspension: SR Suntour XCM HLO-DS
• Wheel Size: 27.5", 29"
• Frame: Aluminum
• Size Range: S, M, L, XL

Additional Shipping Charges Apply: This shipment originates from our distribution center in Bangalore, India. Any orders received out of Bangalore will attract a nominal shipping charge, to be decided after the order is placed and when the product is ready for dispatch - by checking the volumetric weight of the shipment box. Applicable shipping charges by the transporter will be communicated and to be paid before the dispatch.

Specifications

• Frame: Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
• Front Suspension: SR Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset
• Rims: Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
• Hub, Rear: Forged Alloy, Disc, 32H
• Hub, Front: Forged Alloy, Disc, 32H
• Spoke, Nipples: 14g Black Stainless Steel
• Tires: WTB Trailboss Comp, 27.5/29x2.25, Wire Bead
• Derailleur, Rear: MicroSHIFT Advent 9, Clutch
• Derailleur, Front: -
• Shift Lever: MicroSHIFT Advent 9 Trail
• Crankset: Alloy Crank, Steel Narrow-Wide Chainring, 32T
• Bottom Bracket: Sealed Cartridge Bearings, Square Taper
• Chain: KMC X9
• Cassette: SunRace 9-Speed, 11-46T
• Brake, Front: Tektro M275 Hydraulic Disc, 180mm Rotor
• Brake, Rear: Tektro M275 Hydraulic Disc, 160mm Rotor
• Brake Levers: Tektro M275 Hydraulic Disc
• Handlebar: Marin 31.8 Riser, 12mm Rise, 780mm Width
• Stem: Marin Alloy, 31.8mm Clamp, 45mm
• Grips: Marin MTB, Closed End
• Headset: FSA No.10-P
• Seatpost: Marin Alloy, 30.9
• Saddle: Marin MTB
• Pedals: Nylon Platform.

 Geometry & Size Guide

All lengths in millimeters
