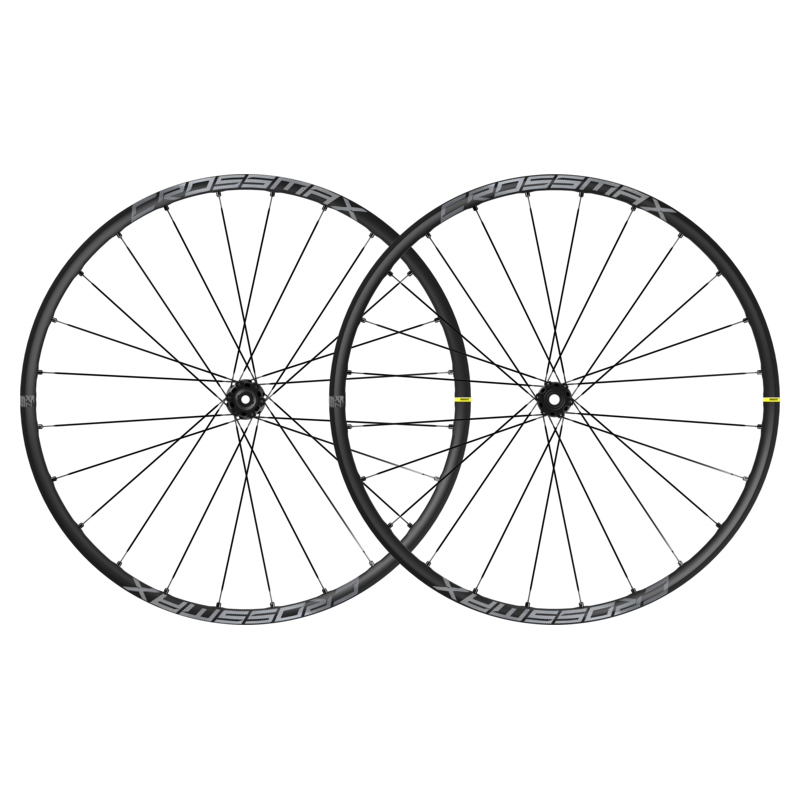

Mavic Alloy MTB Wheelset, 29" | Crossmax XL S 29, Tubeless, 6-Bolts hub or Centerlock Disc brake, Thru-Axle or QR

CROSSMAX XL S 29
Crank up steep climbs and bomb technical descents with the best all-around alloy trail wheel we’ve ever built. The new Crossmax XL S is lighter and stronger, and it makes the tubeless setup a breeze.

• Weight: 1790 grams (Pair 29")
• Weight: 830 grams (Front 29")
• Weight: 960 grams (Rear 29")

You never know what the trail might throw at you: steep climbs and white-knuckle drops, hero dirt, and chunky rocks. Whatever trail features and fun you find, the new Crossmax XL S is ready to roll. This best-in-class alloy 29” wheel features many of the proven technologies that have long made Mavic a leader in MTB wheel innovation.

The rims are engineered with our patented Fore technology, featuring a fully sealed upper bridge that eliminates the need for rim tape. That saves 30 grams per wheel and does away with the hassle of using tape to set up tubeless tires. We use ISM rim machining, which removes material in strategic areas of the rim to minimize weight without compromising strength. The rim has a 30mm internal width, optimized to squeeze the best performance out of any modern trail tire, and our Black Shield technology gives them a distinctive finish that protects against scratches and abrasions.

We use 24 straight-pull spokes to further dial in the sweet spot between lateral stiffness and vertical compliance. The Infinity hubs feature a stiffer and lighter construction that is enhanced by the ultra-reliable ID360 double ratchet system for fast engagement. The wheelset is set up for 6-bolt or center lock disc mounts and is compatible with Shimano HG9, SRAM XD, and Micro Spline freewheel bodies. It’s available in 29” only and ships with UST tubeless valves, spare spokes, and accessories.

KEY BENEFITS

Best in its class alloy Trail wheelset
A super-strong rim with ISM machining minimizes weight without compromising strength.

More confidence and control on rugged trails
30mm wide rim is optimized for lower tire pressure, giving you a smoother ride with more traction and control. Triangular rim shape absorbs heavy impacts so you're free to bomb the descents.

The most user-friendly tubeless system
Fore technology fully sealed rim with no rim tape makes it easy to mount and change tubeless tires. Leaving the upper rim bridge intact boosts the stiffness and the durability of the rim.

SPECIFICATIONS

Rims

• Material: Maxtal
• Material: S6000 Aluminum
• Weight reduction: ISM
• Tire: UST Tubeless and tubetype
• Internal width: 30 mm
• Black Shield treatment (protects your rim against impacts and scratches)
• ETRTO size 29": 622x30TC
• Asymmetrical rim design
• Fore
• SUP

Spokes

• Material: steel
• Nipples: Fore integrated aluminum
• Count: 24 front and rear
• Lacing: front and rear crossed 2, contactless

Hubs

• Hub available with 6-bolt or center lock (R) brake rotors
• Axles: Front 15X110 Boost; Rear 12X148 Boost
• Infinity Hub
• Instant Drive 360
• QRM Auto

Versions

• Disc standard: 6 Bolts or Center Lock (R)
• Hub width: Boost only (front 110, rear 148)
• Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline

Compatibility

• Freewheel: Shimano HG9, XD or Micro Spline
• Rear-axle: 12x148 Boost thru-axle
• Front axle: 15x110 Boost thru-axle
• Compatible Adapters and freewheel bodies
• Boost: Torque Caps (LV2374400)
• ID360 Shimano HG9 alloy freewheel body (LV3780100)
• ID360 Shimano Micro Spline alloy freewheel body (LV3990100)
• ID360 Sram XD freewheel body (LV3740100)

Intended use

• ASTM CATEGORY 4: ENDURO AND TRAIL RIDING
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
• Recommended tyre sizes: 60mm to 76mm (2.35" to 3.0")

Delivered with

• UST valve and accessories
• Multifonction adjustment wrench (delivered with rear wheel)
• 2 replacement spokes with each wheel
• Fore adjustment wrench

KEY TECHNOLOGIES

ISM light rim technology
Inter Spoke Milling An exclusive Mavic patented concept, ISM involves the machining of the lower bridge of the rim between each spoke hole to create a light and rigid rim without reducing the durability of the rim.

UST Tubeless Technology
Traction and control Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control, and comfort whilst reducing inertia and flats.

Black Shield treatment (protects your rim against impacts and scratches)
New MTB rim treatment. 2x superior lifetime against rock impacts and scratches

Instant Drive 360 Freewheel Technology
The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

QRM Auto bearing preload Technology
Qualité de Roulements Mavic Auto Our latest innovation. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.

Fore Tapeless Tubeless Technology
Stiffer and stronger Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed in it, leaving the upper rim bridge intact.

SUP Welding Technology
Stronger and smoother joint Soudé Usiné Process. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.
