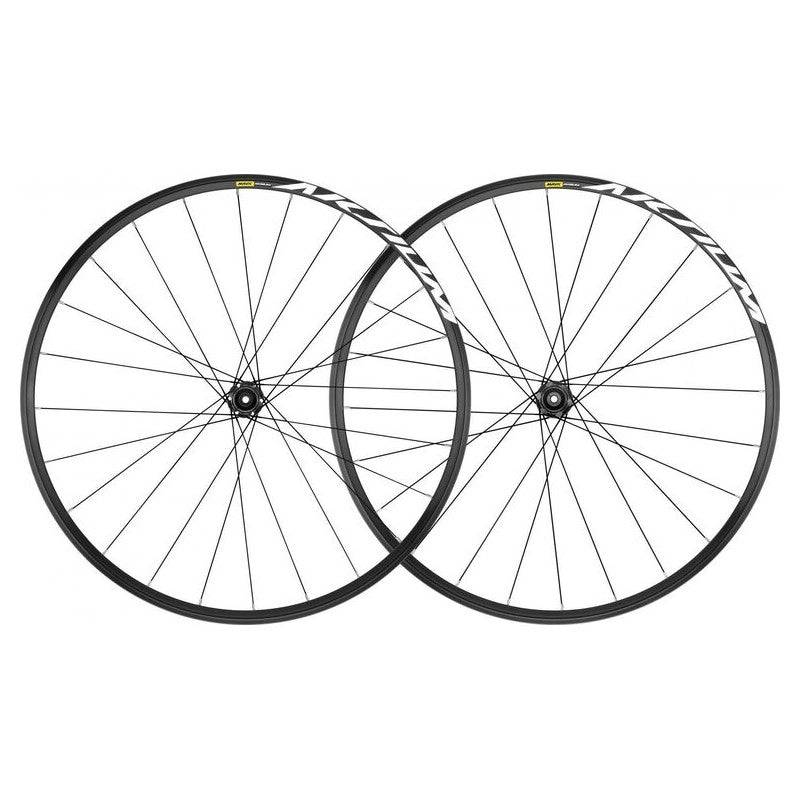

Mavic Alloy Road Wheelset, 700c | Aksium Disc, Clincher, Centerlock Disc Brake, Thru-Axle and QR

ENDURANCE WHEELS - AKSIUM DISC
The reliable everyday performance of Aksium, engineered for the special demands of disc brakes.

• Weight: 1905 grams (Pair)
• Weight: 870 grams (Front)
• Weight: 1035 grams (Rear)

Aksium is a great choice for everyday road riding. With a smart balance of high-quality materials and durable construction, it offers aspiring road riders the clear performance benefits of a high-quality wheelset.

This Aksium Disc model includes special features aimed at the unique demands of disc brake road bikes. It uses straight-pull spokes for added stiffness and strength, and we also increased the spoke count to 24 on both front and rear wheels.

With a 17mm internal width, these rims are compatible with tires up to 32mm, making them versatile, comfortable, and ideal for challenging road conditions. The disc-specific hubs feature super strong QRM bearings that provide low friction and long-term durability.

The Aksium Disc is made for standard quick release and is compatible with Center Lock brake rotors.

KEY BENEFITS

Powerful, reliable disc brakes for added confidence and control
24 spokes front and rear for optimized brake torque distribution. Disc-brake optimized rim profile. Disc-friendly spoke geometry and lacing pattern.

Smooth, efficient ride quality
Wider 17mm (inner width) rims allow tires up to 32mm. High-quality QRM cartridge bearings. Straight pull round spokes are stronger than J-bend options.

SPECIFICATIONS

Rims

• Material: S6000 Aluminum
• Height: 21 mm
• Joint: pinned
• Drilling: traditional
• Disc brake specific profile
• Valve hole diameter: 6.5 mm
• Tire: clincher
• Internal width: 17 mm
• ETRTO size: 622x17C

Spokes

• Material: steel
• Shape: straight pull, round
• Nipples: steel, ABS
• Count: 24 front and rear
• Lacing: front and rear crossed 2

Hubs

• Front and rear bodies: aluminum
• Axle material: aluminum
• Front: Quick release and 12x100 through-axle compatible
• Rear: Quick Release, 12x142 and 12x135 compatible
• Instant Drive 360 freewheel technology
• QRM Auto bearing preload technology

Versions

• Color: Black only
• Disc standard: 6 Bolts or Center Lock®

Compatibility

• Freewheel: Shimano/Sram, convertible to Campagnolo ED11, N3W and XD-R with optional driver bodies
• Front axle: 12x100 thru-axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.
• Rear-axle: 12mm thru-axle, convertible to Quick Release with included adapters

Compatible Adapters and freewheel bodies

• 12 to 9mm front adapter for quick release (LV2680300)
• 12mm front hub cap ([LV2680500] - Delivered with the wheel)
• 12x142 rear axle adapters ([LV2510700] - Delivered with the wheel)
• 12 to 9mm rear adapter for quick release ([LV2510800] - Delivered with the wheel)
• 12x135 rear axle adapters (LV2510900) with axle [LV2373400]
• ID360 Shimano / Sram Light freewheel body (LV3850100)
• ID360 Campagnolo freewheel body (LV3440100)
• ID360 XD-R freewheel body (LV2580100)
• ID360 Shimano / Sram freewheel body ([LV3430100] - Delivered on the wheel)

Intended use

• ASTM CATEGORY 2: road and offroad with jumps less than 15cm
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
• Recommended tire sizes: 25 to 32 mm
• Max. Pressure: see an indication on wheel and tire. If they differ, use the lowest of the 2

Delivered with

• Front QR adapters
• Rear QR adapters for Instant Drive 360
• Rim tape
• User guide.

KEY TECHNOLOGIES

Instant Drive 360 Freewheel Technology
The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

QRM Auto bearing preload Technology
Qualité de Roulements Mavic Auto Our latest innovation. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.
