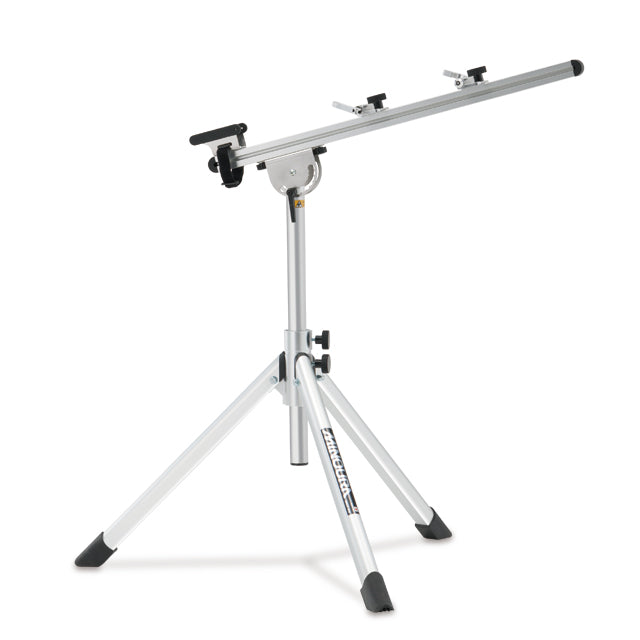

RS-1800 Lightweight Portable Maintenance Stand
Features
- Compact and foldable lightweight alloy stand with tripod base
- Good horizontal rotation mechanism for maintenance and washing
- The arm angle is adjustable by 15 degrees each
- B.B. support shape is good for Aero and rear direct mount brake frames.
Setting
- Support with the aero type of frame, rear and direct mount brake frame
- Front fork
- Support for 9mm quick release and 12 mm / 15 mm thru axle
- Easy to set and re-set because of the special wide stroke quick release Rear End
- Rear end mount support for 9 mm quick release and 15 mm thru-axle
- Support for 126 mm / 130 mm / 135 mm quick release and 142 mm thru-axle
Specifications
- SKU: 410-1650-00
- Colour: Silver
- Material: Aluminum/Stainless/Plastic
- Weight: 3.9 kg
- B.B. Support: Height 740 mm – 1,070 mm
- Setup Dimensions
- Weight = 850 mm
- Height = 750 mm
- Max Load: 30 kgs ( Recommend 20 kgs )
- Warranty: 1 year
PDF Download: Instructions Manual, Schematics
Cautions
- We strongly recommend the use of this item in a vertical orientation only.
- Maintain the balance by rotating the bike position
- For light maintenance and washing only, do not apply too much force.
- Stability will be compromised with electronic groups with a battery on the BB side.
SKU# 410-1605-00
