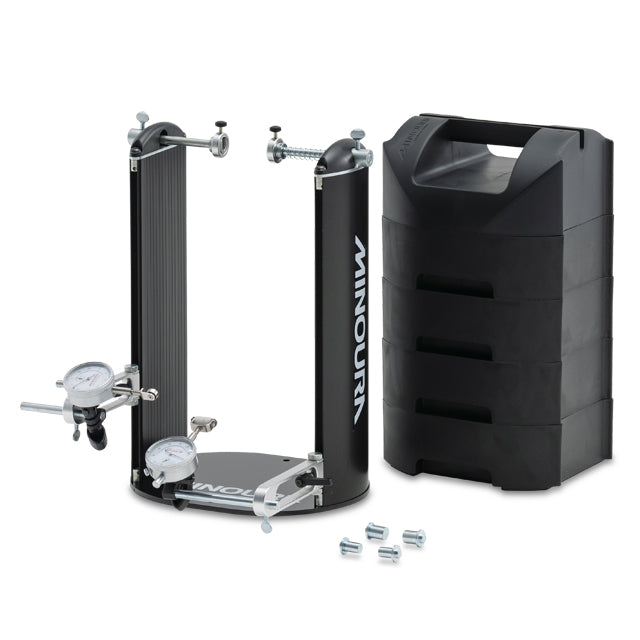

The FT-500Pro is the professional grade version of the FT-50W wider model. This version includes high-end meter gauges for checking vertical and horizontal shaking of the bicycle wheel much more precisely when compared to traditional scratch-sound systems.
- FT-500Pro is a special tool for precisely maintaining the bicycle wheel. Do not use this product for any other purpose than instructed.
- Remove the quick-release (Q/R) skewer from your wheel before use.
- We also recommend removing the tire from the wheel before use.
- The max wheel hub width is 210mm which covers most wide rims for fat bikes. Remove the spring from the right side coupling axle when you mount a very wide hub.
- Clamps on a standard 9mm Q/R using the side couplings.
- 12mm or 15mm thru axle type hubs are also compatible Insert the supplied adapters in the hub hole for mounting.
- Please note that a small amount of rim surface scratches from the roller is normal. Especially on carbon or softer metal wheels. But it's much less than a standard scratching mechanism and safer.
- Do not spin the wheel too fast. Rotate slowly.
- The verticality of the pillar is the most important matter on FT-500Pro. Do not apply any shock or damage to the pillars even while storing.
- Your wheels are critical to your riding safety. You assume all responsibility for working on your wheels. Minoura is not responsible for any issues that might arise from truing your wheels. If you have doubts, please take your wheels to a professional mechanic for service.
- Minoura is not responsible for any issues encountered with your wheels after using the product. Make sure you know what you're doing. If you have any doubts about your abilities, consult a professional.
- Minoura is supplying tools to do a job, but learning how to use this tool is your responsibility.
Features
- The Base plate provides stability for all types of wheel truing
- Easy to set up and use
- Supports up to a 29-inch / FAT size wheel
- BOOST compatible up to 197mm
- Includes 12 / 15mm thru-axle adapters
- Includes two, high precision micro-gauges
- Includes four customizable storage boxes for tools and spray cans.
Wheel setting
- Your quick-release skewer needs to be removed when using the FT-500PRO Hub width maximum of 197mm
- When using a wide-width wheel, please remove the spring
- Insert the supplied adapters for 12mm / 15mm thru-axles.
Specifications
- Colour: Black
- Material: Aluminum/iron/plastic
- Wheel width: 16 – 29 inches (Compatible FAT size wheel)
- Hub width maximum: 197 mm
- Weight: 6.4 kg
- Warranty: 1 year
Cautions
- FT-500PRO is a special tool for precisely maintaining the bicycle wheel. If you do not have any confidence or experience, please do not try to wheel truing.
- The wheel is a very important component for your safety. Truing wheels is a job best done when you have had the proper training or by a skilled professional.
PDF Download: Instructions Manual, Schematics
