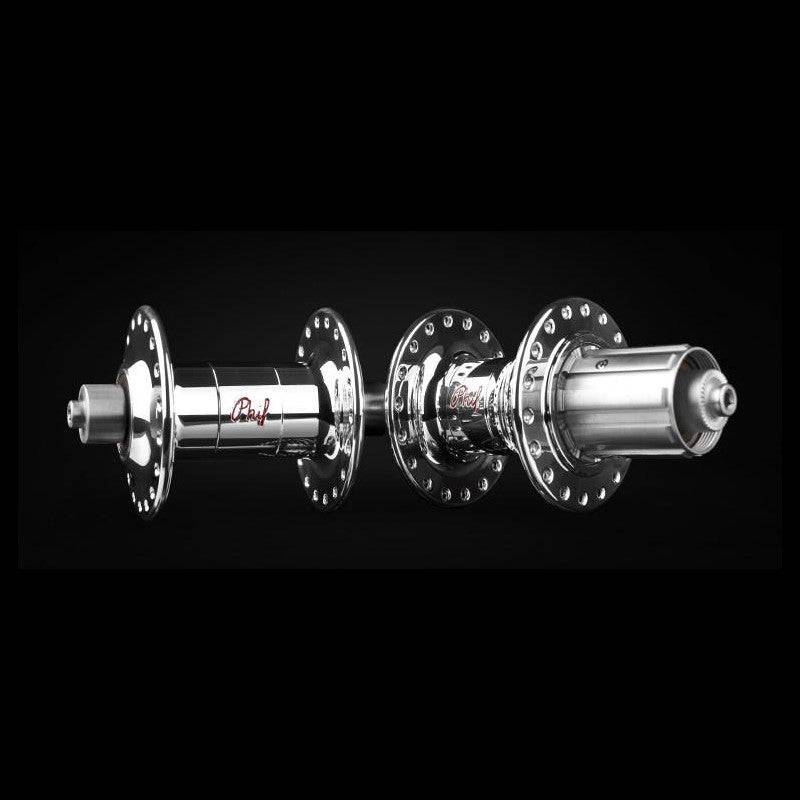

Phil Wood Touring Front Hub, QR, 36h, 100mm

Our front touring hubs are available in 36, 40, and 48 spoke hole configurations (other spoke hole count options are available upon request). We also offer our front touring hub with 2 bearing options: Standard Phil spec bearings which have full contact seals and have a 100% fill with our Phil Waterproof grease. Carbonyte Phil spec bearings are our low drag bearing option which has partial contact seals and has a 30% fill with our full synthetic Phil Carbonyte grease.

Specifications

• Hub shell material 6061 Aluminum
• Axle material 7075 Aluminum
• Endcap material 7075 Aluminum
• Front hub width 100 mm
• Axle diameter 15 mm
• Bearing availability 6902 (Standard), 6902 (Carbonyte)
• Front hub weight 202 grams
• Rider and bike weight limit 280 lbs / 127 kgs
• Materials All of our manufactured items are machined out of US-produced materials
• Hub Dimensions
• Axle length: 100 mm
• Left side flange diameter: 59 mm
• Right side flange diameter: 59 mm
• Left side flange to center: 31 mm
• Right side flange to center: 31 mm.

SKU# PW-DTF600
