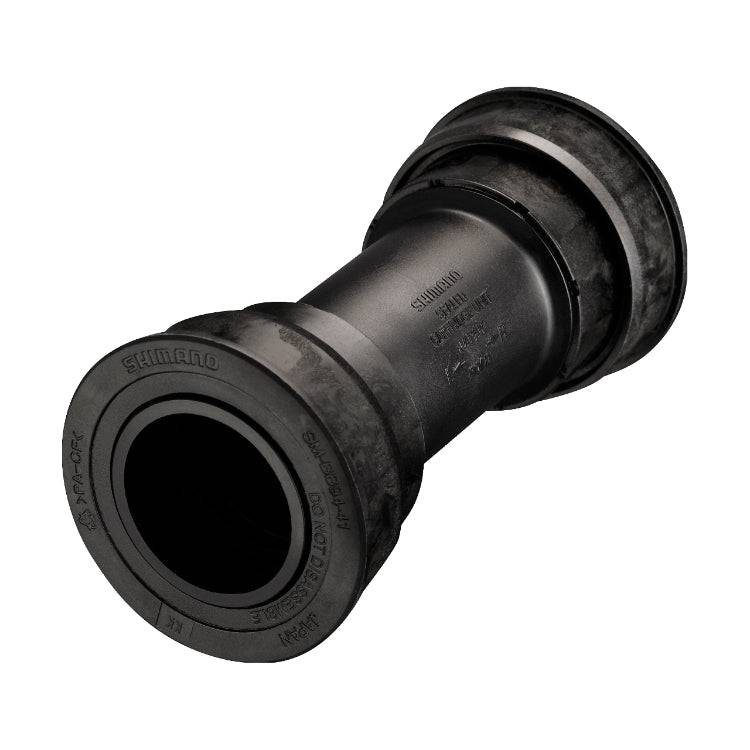

Shimano Bottom Bracket, Press Fit | XTR SM-BB94-41A, Hollowtech II 89.5/92mm

Rs. 3,190.00
Tax included. Shipping calculated at checkout.
Shop securely for thousands of cycling products online in India Shop online securely for thousands of cycling products in India
Ordering Assistance Helpline:
Please speak with our support team on +919538949110 for any guidance while ordering. Product Country of Origin: Taiwan.

The Pro-Level engineering built quality of Shimano XTR - Robustness and incredibly durable and smoothness in XTR SM-BB94-41 bottom bracket for Press Fit

The Shimano XTR is an all-rounder - known for world tour-ready reliability to being novice budget racer friendly. The XTR SM-BB94-41 is for press fit installation allowing Hollowtech II-compatible cranks with 24 mm axles to be mounted on MTB frames with bottom bracket widths measuring 89 or 92 mm and a diameter of 41 mm. The shells and sleeve of the durable press-fit bottom bracket are made of plastic, for Pro level usage. The small ball bearings are impressively lighter by 20 grams lighter than their predecessor.



SHIMANO XTR - Bottom Bracket - Press-Fit - HOLLOWTECH II - 89.5/92 mm shell width

With smooth rotation and better sealing performance, the SHIMANO XTR bottom bracket is durable for mountain bike usage. It is available in threaded and press-fit options.

  • Lightweight to offset weight disadvantage of drivetrain
  • -19.3g (SM-BB93 vs. SM-BB90A)
  • -18.5g (SM-BB94-41A vs. SM-BB91-41A)
  • Smoother rotation
  • Better sealing performance
  • Durable enough for mountain bike usage
  • Fits various frame designs
  • SM-BB93 for threaded bottom bracket
  • SM-BB94-41A for press-fit bottom bracket
  • Weight: 73g (SM-BB93) 58g (SM-BB94-41A)

  • Application: Cross Country, All Mountain, Enduro
  • Series: XTR
  • Type: Press Fit BB92
  • Shell Diameter: 41 mm
  • Shell Width: 89.5 mm / 92 mm
  • Axle Diameter: 24 mm (Hollowtech II)

Technical Information:
  • Bearings: Steel
  • Bottom Bracket Cup Material: synthetic resin
  • Bottom Bracket Centre Tube Material: synthetic resin

  • XTR FC-M980, FC-M985, FC-M9000, FC-M9020, FC-M9100, FC-M9120, FC-M9130
  • FC-MT900

  • small ball bearings for low weight
  • 18.5 g lighter than predecessor SM-BB91-41A
  • smooth rotation
  • improved seal for long durability: specially developed for MTB use


Hollowtech II
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight, and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure long service life.

Product Specifications
  • MODEL NO: SM-BB94-41
  • SERIES: XTR M9000 Series
  • Average weight: 58
  • Press-Fit bottom bracket shell width (mm)_89.5: X (SM-BB94-41A)
  • Press-Fit bottom bracket shell width (mm)_92: X (SM-BB94-41A)
  • HOLLOWTECH II bottom bracket_Press-Fit type: ✔
  • A small ball bearing: ✔


*Note: Images are for representational purposes only. Actual size / packaging varies with product type/size.
