Shimano MTB Cranksets | Deore FC-M4100-2, 2x10-Speed, Hollowtech II

Deore is a symbol of ruggedness and precision. High caliber groupset for the common man at affordable prices.

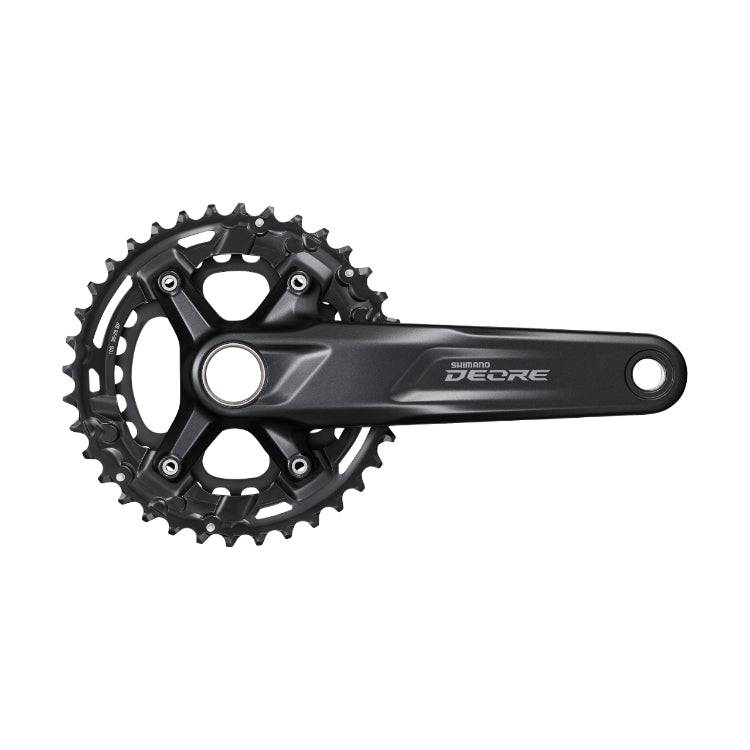

Shimano Deore - MTB Crankset - 2-Piece Crankset - 2-Piece Crankset - Q-Factor 178.5 Mm - Chain Line 48.8 Mm - 2x10-Speed FC-M4100-2

The SHIMANO DEORE FC-M4100-2 mountain bike crank delivers precise and reliable shifting for 2x10-speed drivetrains. This 2-piece crank offers a 36-26T gear combination and a 48.8 mm chain line.

Features

• 2-Piece Crankset increases the rigidity of crankset with less weight and transmits pedaling force efficiently
• Extra wide range.

Specifications

• Model No: FC-M4100-2
• Series: DEORE M4100 Series
• Color Series: Color
• 2-Piece Crankset: ✔
• Chainring combination: 36-26T
• Compatible bottom bracket type_Outboard: ✔
• Crank fixing screw included: ✔
• Crank arm length (mm)_170: ✔
• Crank arm length (mm)_175: ✔
• Spider/Gear arms: 4
• Optional chain guard_Without chain/bash guard: ✔
• Recommended bottom bracket_Press-fit BB-MT500-PA
• Recommended bottom bracket_Threaded (normal) BB-MT501
• Threaded bottom bracket shell width (mm)_68: ✔
• Threaded bottom bracket shell width (mm)_73: ✔
• Q-factor (mm): 178.5
• Chain line (mm): 48.8
• Compatible chain HG-X 10-speed
• P.C.D. (mm): 96/64
• Rear speeds: 10
• O.L.D._QR/Nut (mm): 135
• O.L.D._Thru (mm): 142.

*Note: Images are for representational purposes only. Actual size / packaging varies with product type/size.
