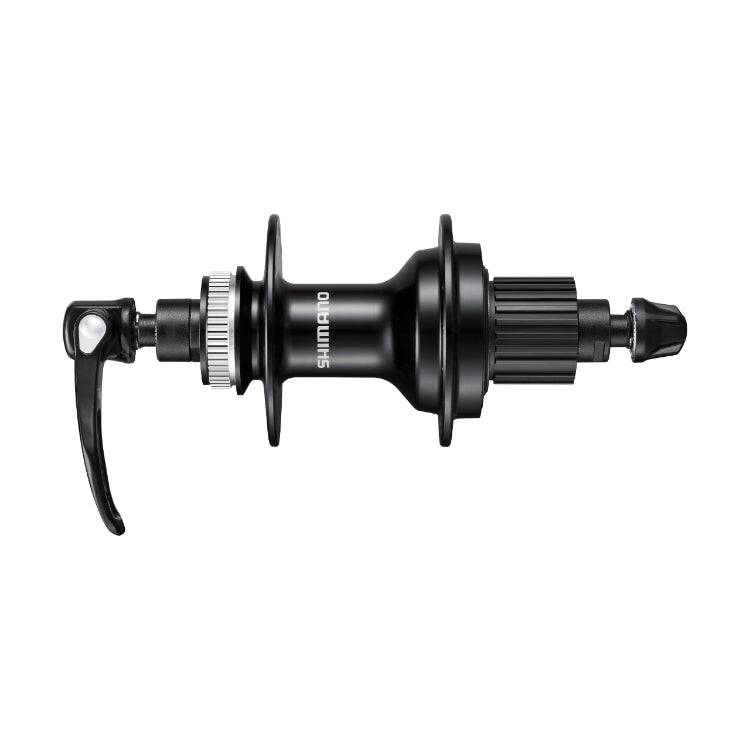

Shimano Rear Hub | Deore FH-MT500, 12-Speed, Micro Spline, Center Lock Disc, QR

SHIMANO DEORE MT500 Series - Rear Freehub - Micro Spline - Center Lock - Disc Brake - QR168x12 mm E-THRU Axle - 12-speed

Quick and Easy Assembly by CENTER LOCK. 10T top wide range cassette compatible

• Simple setup and reliable trail performance
• Easy disc brake rotor installation with spline mount and lock ring
• Stiff & lightweight 12 mm E-THRU skewer system
• Labyrinth & Contact Sealing
• More maneuverability and aggressive riding realized
• 135 mm O.L.D.
• QR 168mm
• Smaller spline diameter for 10T top gear

Product Specifications

• Use: MTB
• Model: FH-MT500
• Gear: 12-speed
• Cassette mount: Micro-Spline
• Brake type: Center-Lock Disc
• P.C.D.: left 61mm / right 61mm
• Flange diameter: left 69.8mm / right 69.8mm
• Flange distance: 55.17mm
• Offset: 6.72mm
• Hub: Labyrinth and contact seals
• Type: Quick release 166mm
• Axle length: 135mm

Spoke hole (choose a variant)

• 32h
• 36h

Material

• Hub: Aluminum Anodized
• Axle: Aluminum
• Freehub body: Steel

Color

• black

Weight

• approx. 515g (manufacturer information)

Package Contents

• 1 Shimano FH-MT500 Center-Lock Rear Hub 135mm
• 1 Shimano Quick Release

Technologies

Cup & Cone Bearing
Angular contact bearings of the cup & cone type offer greater strength than sealed cartridge industrial bearings due to their ability to displace lateral and vertical loads more effectively for super smooth rotation and longer durability. Angular contact bearings also allow easier maintenance, adjustability, and serviceability.

Center Lock System
The CENTER LOCK system makes an easy rotor installation possible with a spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.

Micro-Spline
MICRO SPLINE delivers a lightweight aluminum FREEHUB body to reduce weight and 10 teeth top gear. Use combination with MICRO SPLINE cassette sprocket and FREEHUB.

Benefits & Features

• Lightweight aluminum MICRO SPLINE FREEHUB seamlessly integrates with small 10-tooth top gears.
• Smaller and more widely distributed splines limit cog damage on lightweight aluminum FREEHUB.

Manufacturer item no.:

• EFHMT500AZAL
• EAN: 4550170445171
• UPC: 192790445175

Product Specifications

• MODEL NO: FH-MT500
• SERIES: SHIMANO
• Color: Black
• Brake type: CENTER LOCK disc brake
• Axle fixing method: Quick-release
• Bearing_Cone: CBN
• External serration disc brake rotor lock ring_without: ✔
• Flange diameter Left/Right (mm): 69.8/69.8
• Flange distance (mm): 55.17
• Internal serration disc brake rotor lock ring_without: ✔
• Offset (mm): 6.72
• P.C.D. left / right (mm): 61/61
• Quick engagement: ✔
• 10 tooth cog compatible: ✔
• O.L.D. (mm): 135
• Spoke hole_28H: ✔
• Spoke hole_32H: ✔
• Spoke hole_36H: ✔
• Rear speeds: 12
• Quick-release skewer length (mm)_168: ✔
• Quick-release skewer length (mm)_173: ✔
• Seal_FREEHUB body: Contact
• Seal_Hub: Labyrinth & Contact
• Color_1 Hub shell: Black
• Color_1 Quick release: Black
• MICRO SPLINE: ✔
• Engagement type: Pawl ratchet
