Shimano Rear Hubs | CUES FH-TC500-HM, Center Lock 142x12mm E-THRU Axle, 11/10/9/8-Speed HG Spline M - Cycling Boutique
  • SKU: CB26714

Shimano Rear Hubs | CUES FH-TC500-HM, Center Lock 142x12mm E-THRU Axle, 11/10/9/8-Speed HG Spline M

Rs. 3,010.00
Tax included. Shipping calculated at checkout.
Shop securely for thousands of cycling products online in India Shop online securely for thousands of cycling products in India
  • Vendor: Shimano
  • Product Type: Hubs
  • Barcode: 4550170641061
Ordering Assistance Helpline:
Please speak with our support team on +919538949110 for any guidance while ordering. Product Country of Origin: Taiwan.

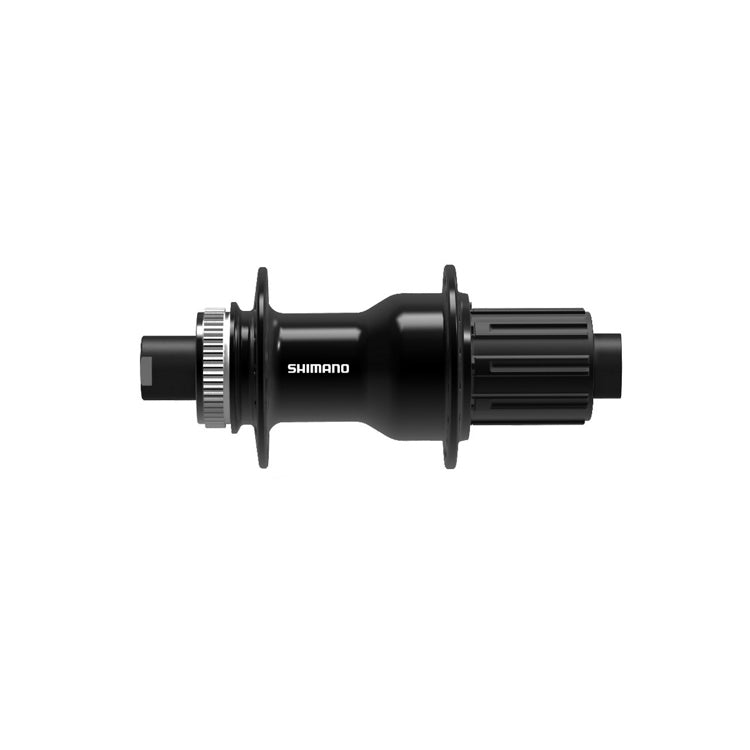

Shimano Center Lock Disc Brake Rear FREEHUB 142x12 mm E-THRU Axle 11/10/9/8-speed HG spline M FH-TC500-HM
Stiff and lightweight FREEHUB for reliable trail performance.

  • Simple setup and reliable trail performance
  • Easy disc brake rotor installation with spline mount and lock ring
  • Stiff and lightweight 12 mm E-THRU skewer system
  • Labyrinth & Contact Sealing
  • O.L.D.: 142 mm
  • #13 and #14 spoke compatible


The tool-less type thru-axle skewer system optimizes rigidity and weight balance and enables easy operation with a reliable internal cam mechanism. The 15 mm thru-axle system is 15% stiffer torsionally and 25% stiffer in transverse shear than a traditional 9 mm quick-release front axle system. High rigidity is secured while keeping the optimum weight balance. The E-THRU axle hub system minimizes the distortion of suspension while maintaining lightweight for riding around sharp corners at high speed.

Center Lock
The CENTER LOCK system makes an easy rotor installation possible with a spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time for both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.

  • Model No: FH-TC500-HM
  • Series: CUES U6000 Series 11-speed
  • Colour|1 Hub shell: Black
  • Brake type: Center Lock disc brake
  • Rear speeds: 11/10/9/8 - 11/10/9/8
  • O.L.D. (mm): 142 - 142
  • Spoke hole|28H: ✔
  • Spoke hole|32H: ✔
  • Spoke hole|36H: ✔
  • External serration disc brake rotor lock ring|Without: ✔
  • Internal serration disc brake rotor lock ring|Without: ✔
  • Axle fixing method: 12 mm E-THRU
  • Thru axle (length x inner diameter; mm)|142 x 12: ✔
  • Flange distance (mm): 55.45 | 55.45
  • Offset (mm): 7.6 | 7.6
  • P.C.D. left / right (mm): 50.5/51.5 | 50.5/51.5
  • Flange diameter left / right (mm): 59.3/60.3 | 59.3/60.3
  • Spline type|HG spline M (10/9/8-speed, MTB 11-speed): ✔
  • Engagement type: Pawl ratchet
  • Seal|Hub: Labyrinth+Contact - Labyrinth+Contact
  • Seal|FREEHUB body: Contact - Contact

SKU# EFHTC500HMB MTB-OTHERS Freehub FHTC500HM ( Select Option=32H)

*Note: Images are for representational purposes only. Actual size / packaging varies with product type/size.
