Sold Out
  • SKU: CB19516

Wolf Tooth Derailleur Hanger | RoadLink, for Shimano Wide Range Road Configuration

Rs. 3,700.00
Tax included. Shipping calculated at checkout.
Shop securely for thousands of cycling products online in India Shop online securely for thousands of cycling products in India
Ordering Assistance Helpline:
Please speak with our support team on +919538949110 for any guidance while ordering. Product Country of Origin: Taiwan.
DESCRIPTION

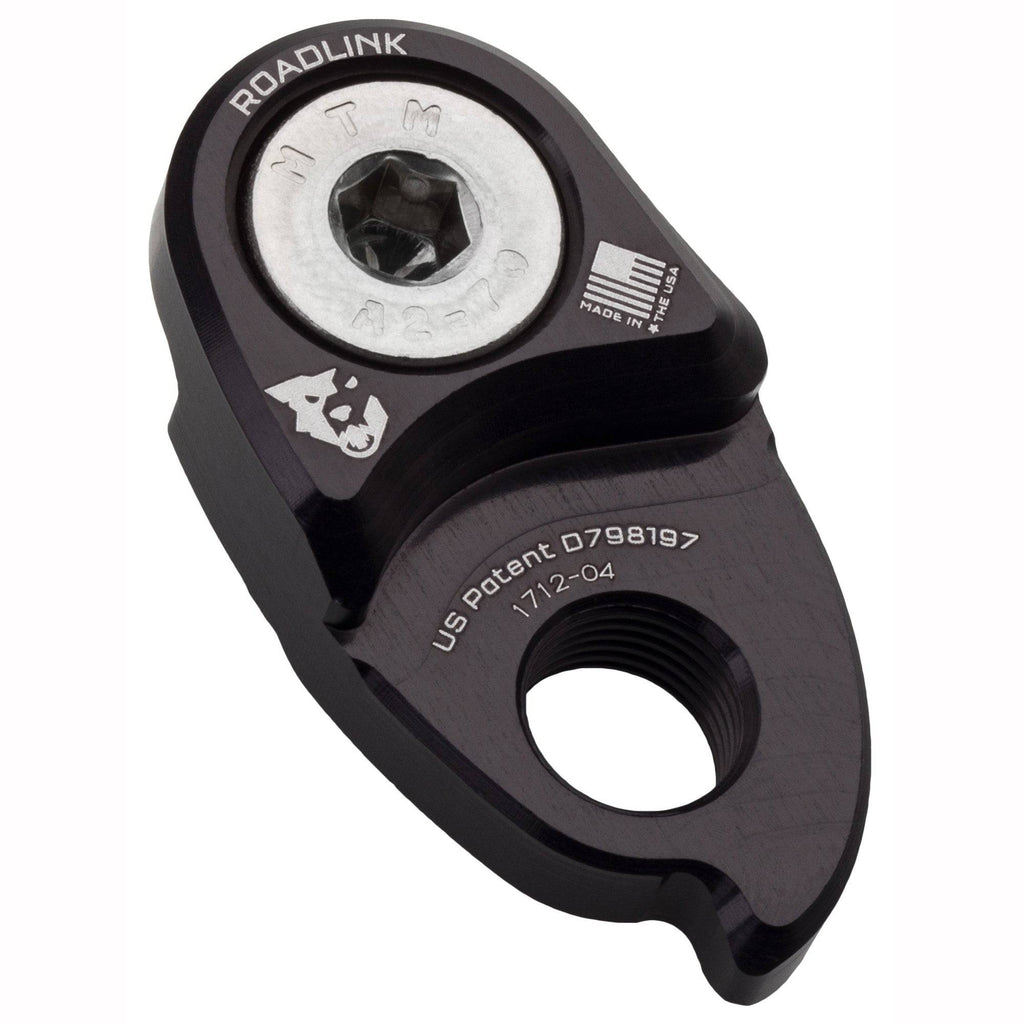

The RoadLink™ derailleur hanger extension is a unique patented device that offsets the position of your road derailleur to make it possible to run a wide-range mountain bike-style cassette. It is an ideal solution for riders looking to convert their road, gravel, cyclocross, or commuter drivetrain bike to attain the simplicity and reduced weight of a single front chainring but without giving up the gear range of a double. It is also great for riders with double chainring bikes that want lower gearing for those ultra steep climbs. It does not compromise the shifting in the smaller cogs of the cassette but yet it enables the derailleur to work with as large as a 40T cassette.

  • Easily installed in less than 5 minutes by any home mechanic.
  • The RoadLink mounts only to standard derailleur hangers.

Note: RoadLink repositions your derailleur to provide clearance for larger cassette cogs but it does not increase derailleur capacity. It is critical to find and understand your derailleur’s capacity before attempting to expand its gear range.

The RoadLink™ is optimized for use with 10 or 11-speed 11-36t and 11-40t cassettes and works great with Wolf Tooth’s 40-tooth GC cassette extenders and Drop-Stop chainrings. The road link is optimized around Shimano road derailleurs. It works great for road, cyclocross, touring, commuting, and drop-bar mountain bikes.


Compatibility

10s Cassette Compatibility:

  • 11-32: Not Required (GS medium cage rear derailleur works)
  • 11-34: Single (for double chainring be sure to not exceed the derailleur's capacity)
  • 11-36: Single (for double chainring be sure to not exceed the derailleur's capacity)
  • 11-40: Single (for double chainring be sure to not exceed the derailleur's capacity)
  • 11-42: Not supported

11s Cassette Compatibility:

  • 11-32: Not Required (GS medium cage rear derailleur works)
  • 11-34: Single (for double chainring be sure to not exceed the derailleur's capacity)
  • 11-36: Single (for double chainring be sure to not exceed the derailleur's capacity)
  • 11-40: Single (for double chainring be sure to not exceed the derailleur's capacity)
  • 11-42: Not supported
  • 10-42: Not supported.

Tech Specs
  • Double chainrings are only supported with GS (medium cage) rear derailleurs. You may need to change the front gearing so the capacity of the rear derailleur is not exceeded.
  • The RoadLink™ mounts only to standard derailleur hangers.
  • The RoadLink™ is optimized for the 10- and 11-speed Shimano road derailleur geometry. It also works very well with 9-speed road derailleurs. Traditional SRAM derailleurs work but not the 1x specific X-HORIZON rear derailleurs. Campy derailleurs work best with cassettes up to 11-36.
  • SRAMs Exact Actuation road shifters (10s and 11s) are interchangeable with their Exact Actuation mountain derailleurs - which can easily handle a 36 or 40 (and, for 1x, are available with a clutch) - and the CX1 will go even bigger with a single ring. If you already have SRAM, they also make nice front brake-only levers that match their rear shifters too.
  • Triple chainrings are not supported (medium cage rear derailleurs cannot accommodate that big of a range).
  • Direct Mount-native frames are not supported.
  • Due to the lack of a clutch mechanism on Shimano road derailleurs, secondary chain retention (front derailleur or chain device) may be needed, especially for rough or off-road use.
  • Due to variations in derailleur hanger geometry, chainstay length, chainring size, B-screw adjustment, and suspension configuration, individual results will vary.
  • This 7.9mm max dimension is controlled by the Shimano spec, but a few derailleur hangers don’t meet the spec. You can file a bit of the bottom "tang" of those derailleur hangers to install the RoadLink™.

Tech Specs
  • Weight: 17g
  • Material: 6061 aluminum
  • Included: stainless steel bolt
  • Torque: 8-10Nm
  • Made in the USA.

SKU# Q-DP0401
